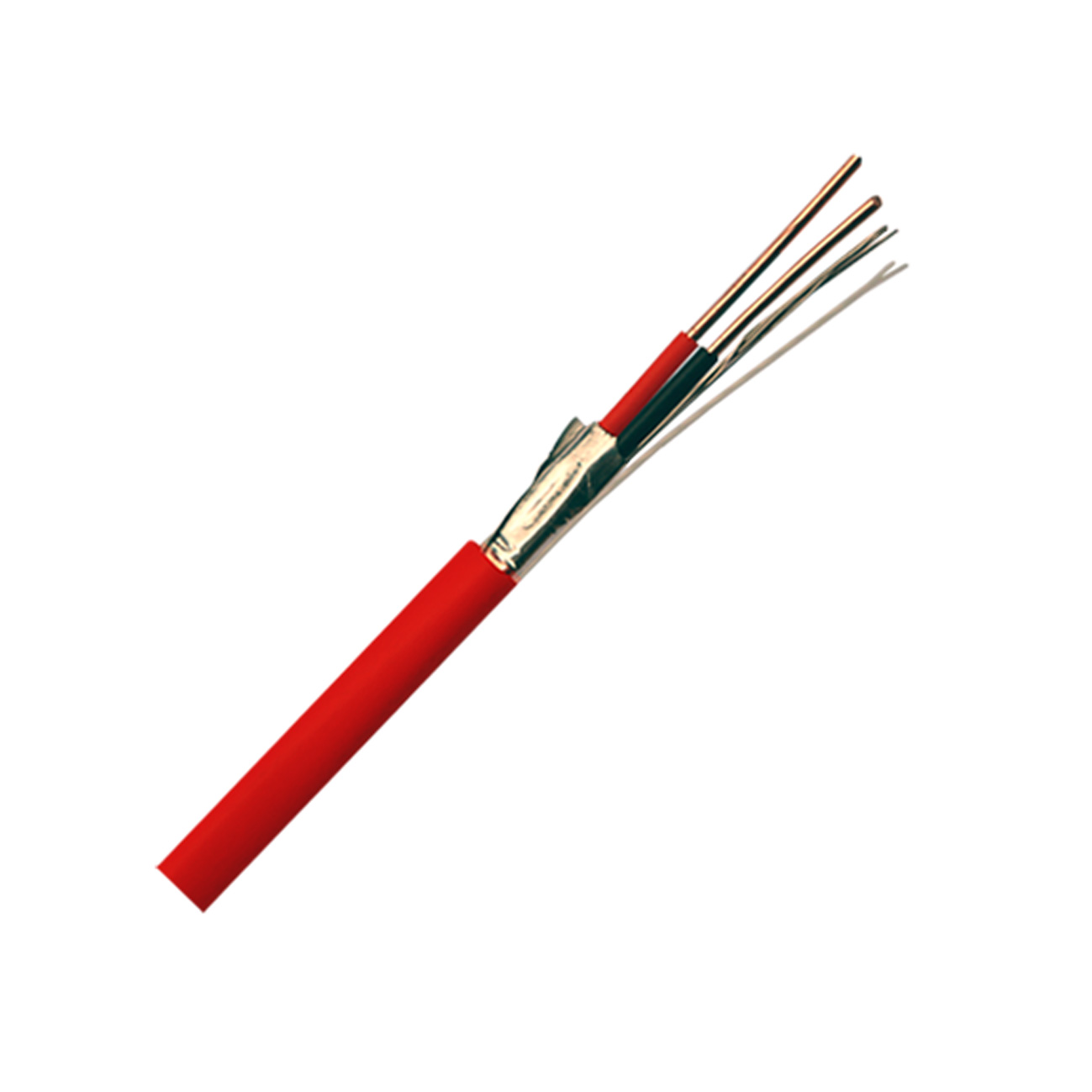

1.0mm2×2C Fire Alarm Cable
Item No.: TSC01-010A

Specifications

Size

1.0mm2×2C

Center Conductor

1.12±0.02mm BC

Dielectric

2.10mm PVC

Shield

PET+Bonded AI Foil

Drain Wire

0.8mm AL

Jacket

4.70±0.05mm PVC

Conductor Resistance

18 Ω/KM

Insulation Resistance

200 M.Ω×KM

Operating Voltage

300V/500V

Test Voltage

2.5KV

Temperature Range

-20℃-75℃

Package

100m/plastic spool
Select to:
Other Products:
1.0mm2×2C Fire Alarm Cable    1.5mm2×2C Fire Alarm Cable    2.5mm2×2C Fire Alarm Cable    16AWG×2C Fire Alarm Cable
