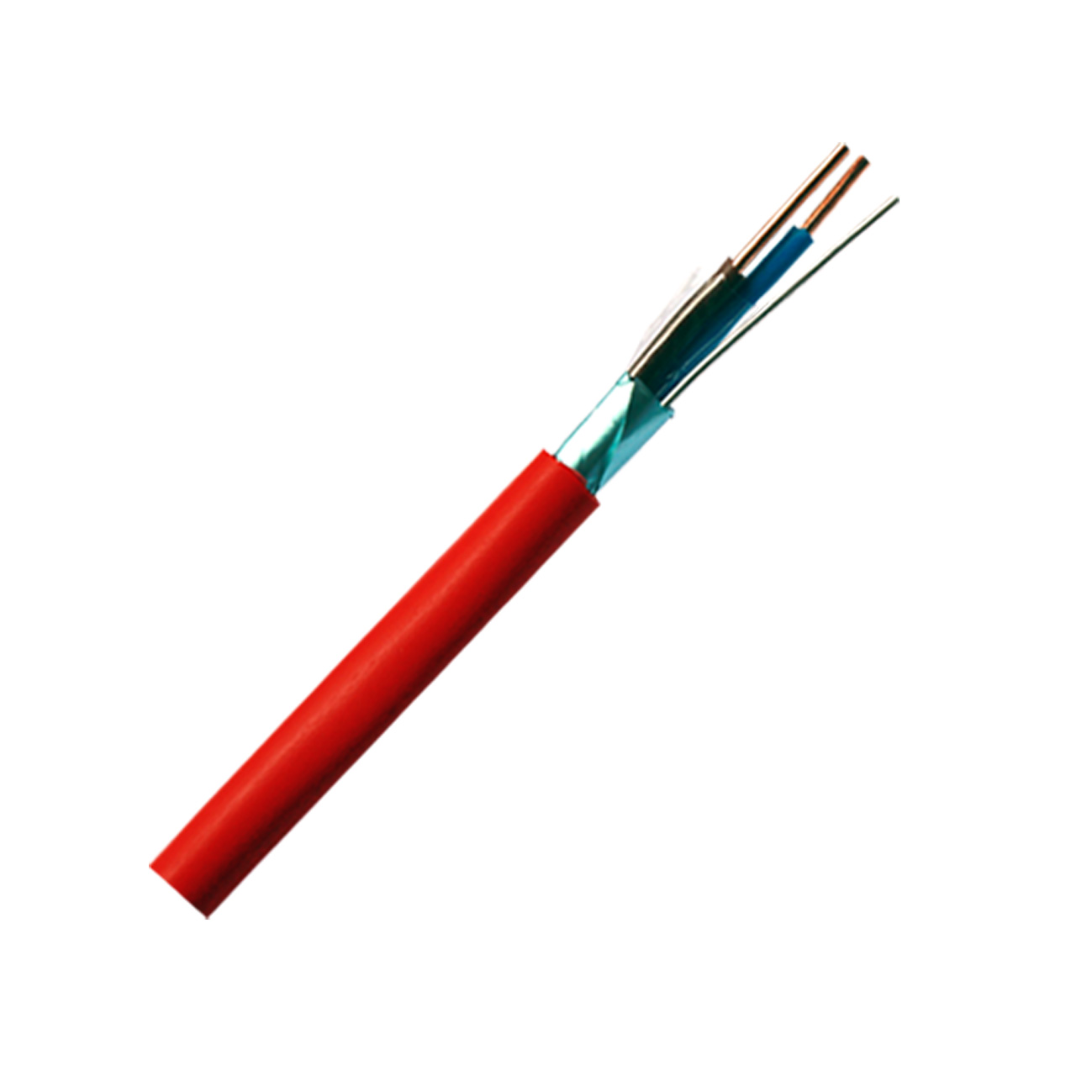

1.5mm2×2C Fire Alarm Cable
Item No.: TSC01-015A

Specifications

Size

1.5mm2×2C

Center Conductor

1.38±0.02mm BC

Dielectric

2.20mm PVC

Shield

PET+Bonded AI Foil

Drain Wire

0.8mm AL

Jacket

5.20±0.05mm PVC

Conductor Resistance

12 Ω/KM

Insulation Resistance

200 M.Ω×KM

Operating Voltage

300V/500V

Test Voltage

2.5KV

Temperature Range

-20℃-75℃

Package

100m/plastic spool
