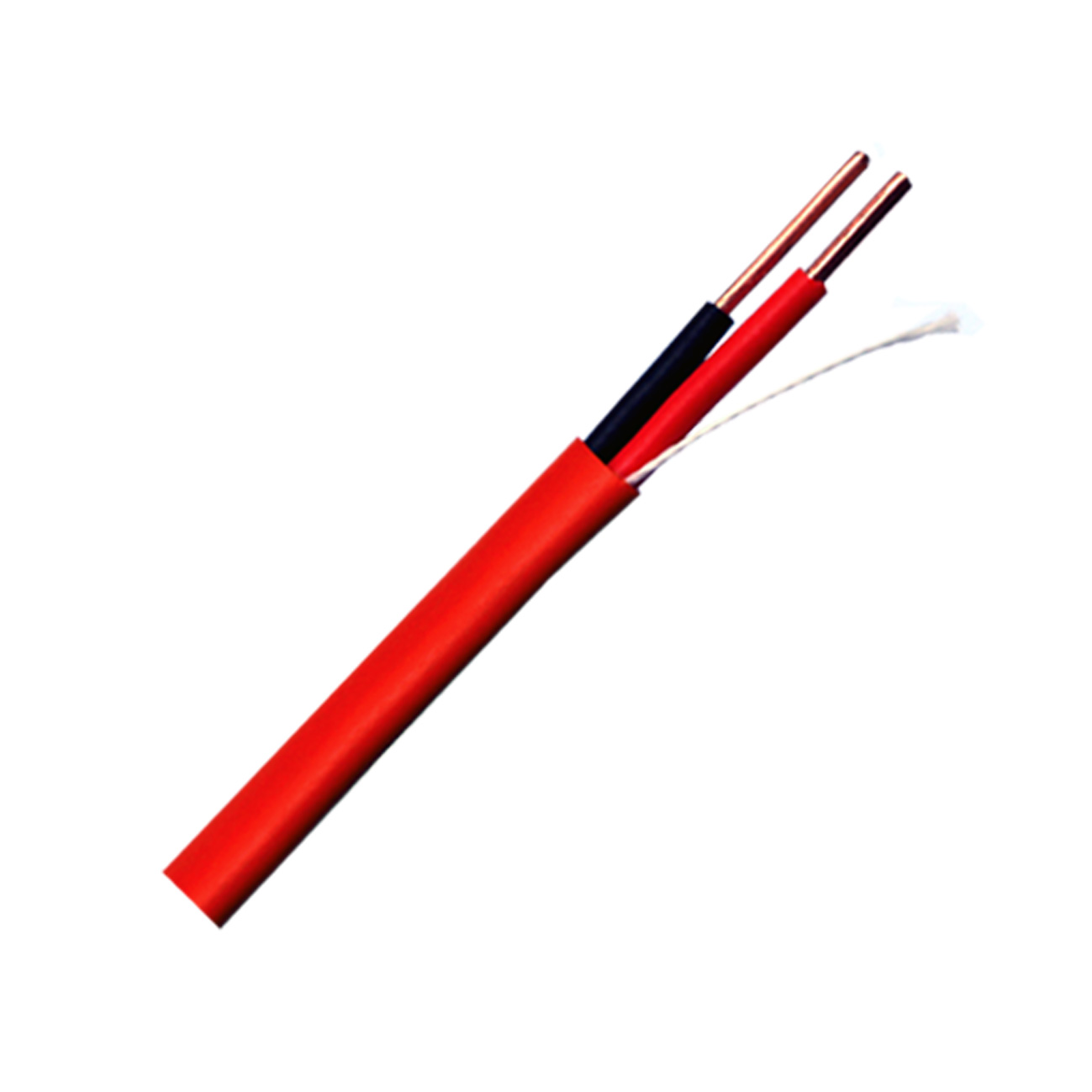

16AWG×2C Fire Alarm Cable
Item No.: TSC01-016

Specifications

Size

16AWG×2C

Center Conductor

1.29±0.003mm BC

Dielectric

1.80mm PVC

Shield

/

Drain Wire

/

Jacket

4.40±0.01mm PVC

Conductor Resistance

7.4 Ω/KM

Insulation Resistance

200 M.Ω×KM

Operating Voltage

300V/500V

Test Voltage

2.5KV

Temperature Range

-20℃-75℃

Package

100m/plastic spool
