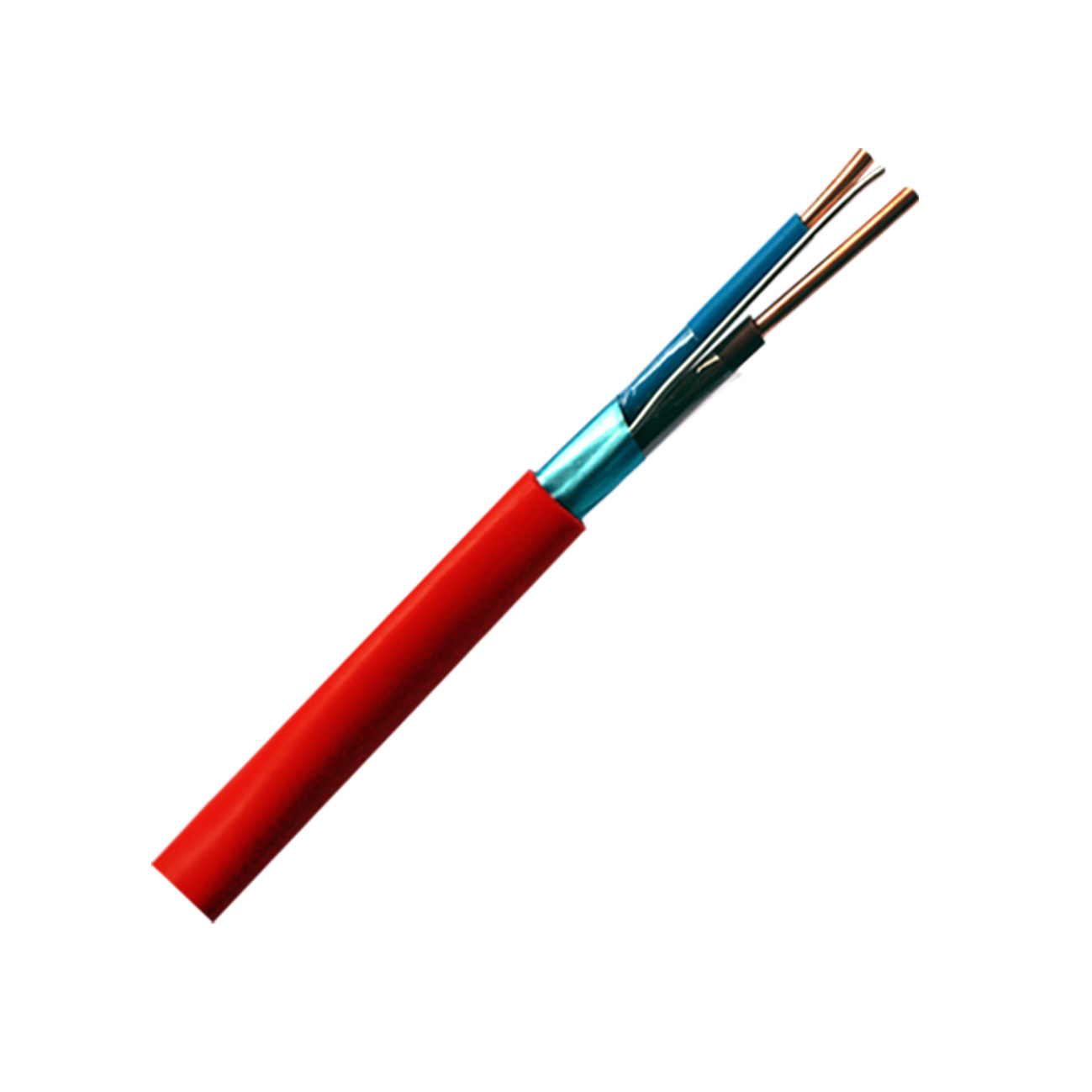

2.5mm2×2C Fire Alarm Cable
Item No.: TSC01-025A

Specifications

Size

2.5mm2×2C

Center Conductor

1.76±0.02mm BC

Dielectric

2.75mm PVC

Shield

PET+Bonded AI Foil

Drain Wire

0.8mm AL

Jacket

7.50±0.05mm PVC

Conductor Resistance

7.4 Ω/KM

Insulation Resistance

200 M.Ω×KM

Operating Voltage

300V/500V

Test Voltage

2.5KV

Temperature Range

-20℃-75℃

Package

100m/plastic spool
