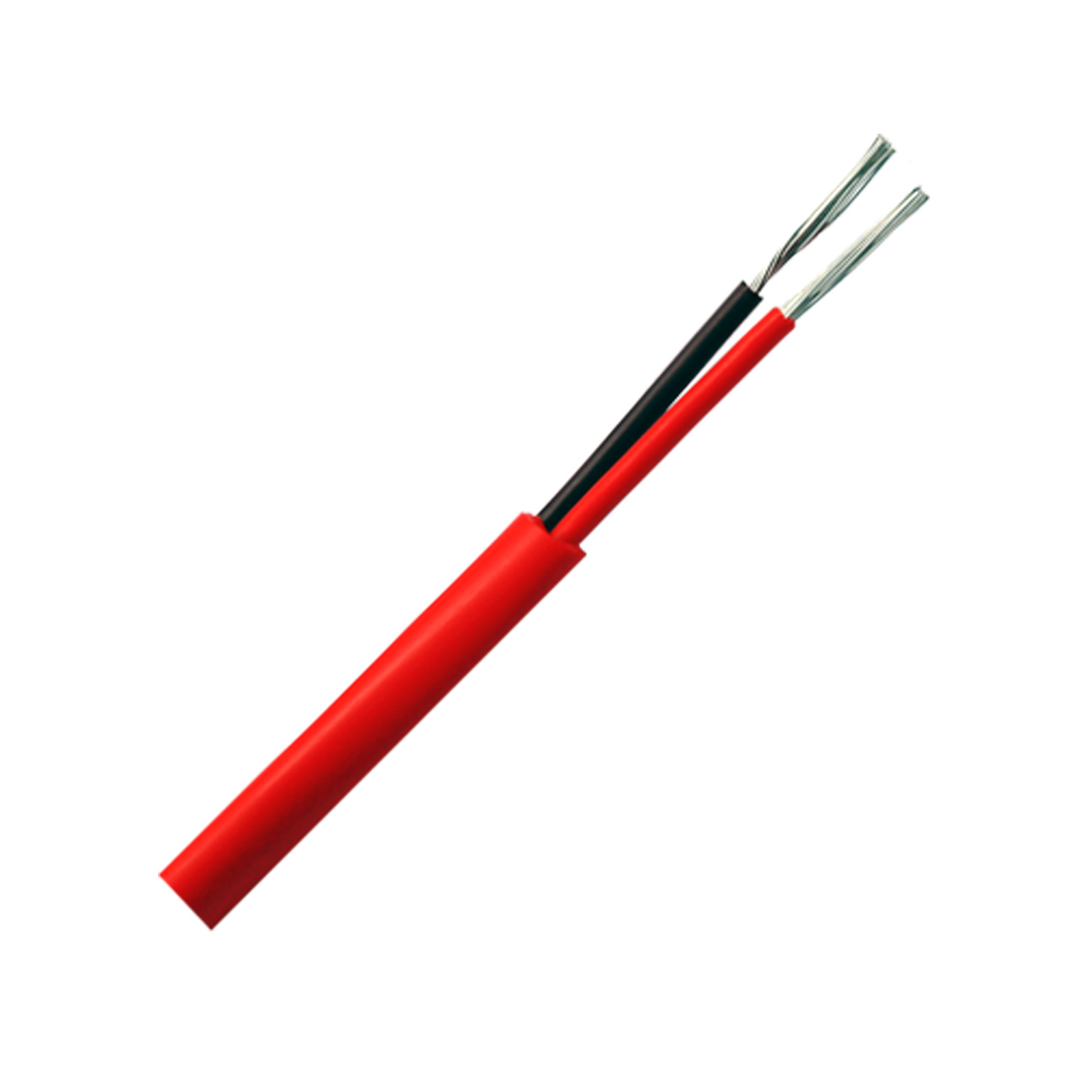

1.25mm2×2C Fire Alarm Cable
Item No.: TSC01-032

Specifications

Size

1.25mm2×2C

Center Conductor

0.32×16×2Cmm TC

Dielectric

2.70mm PVC

Shield

/

Drain Wire

/

Jacket

7.90±0.01mm PVC

Conductor Resistance

7.4 Ω/KM

Insulation Resistance

200 M.Ω×KM

Operating Voltage

300V/500V

Test Voltage

2.5KV

Temperature Range

-20℃-75℃

Package

100m/plastic spool
